MONORAIL DOORS

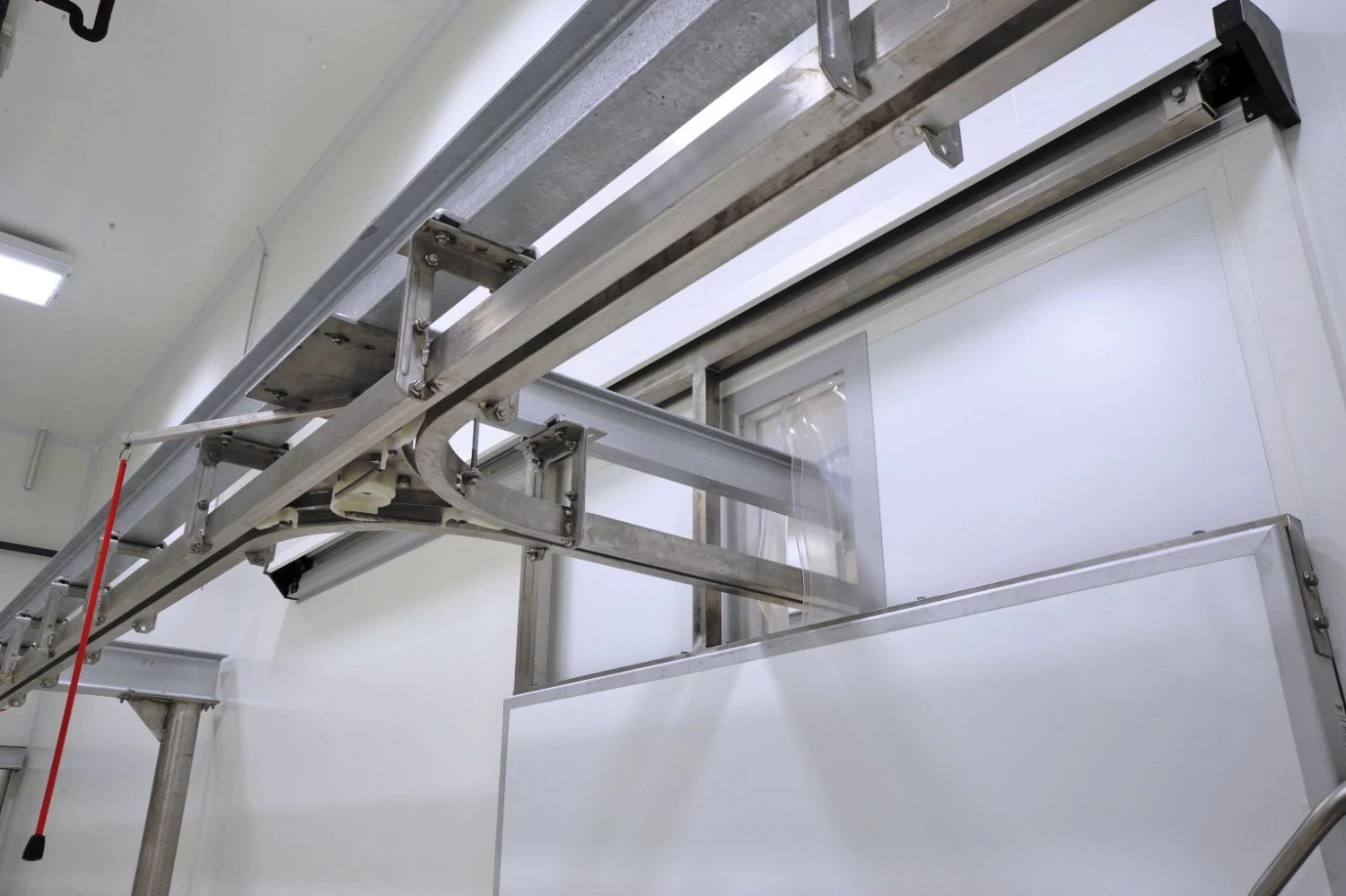

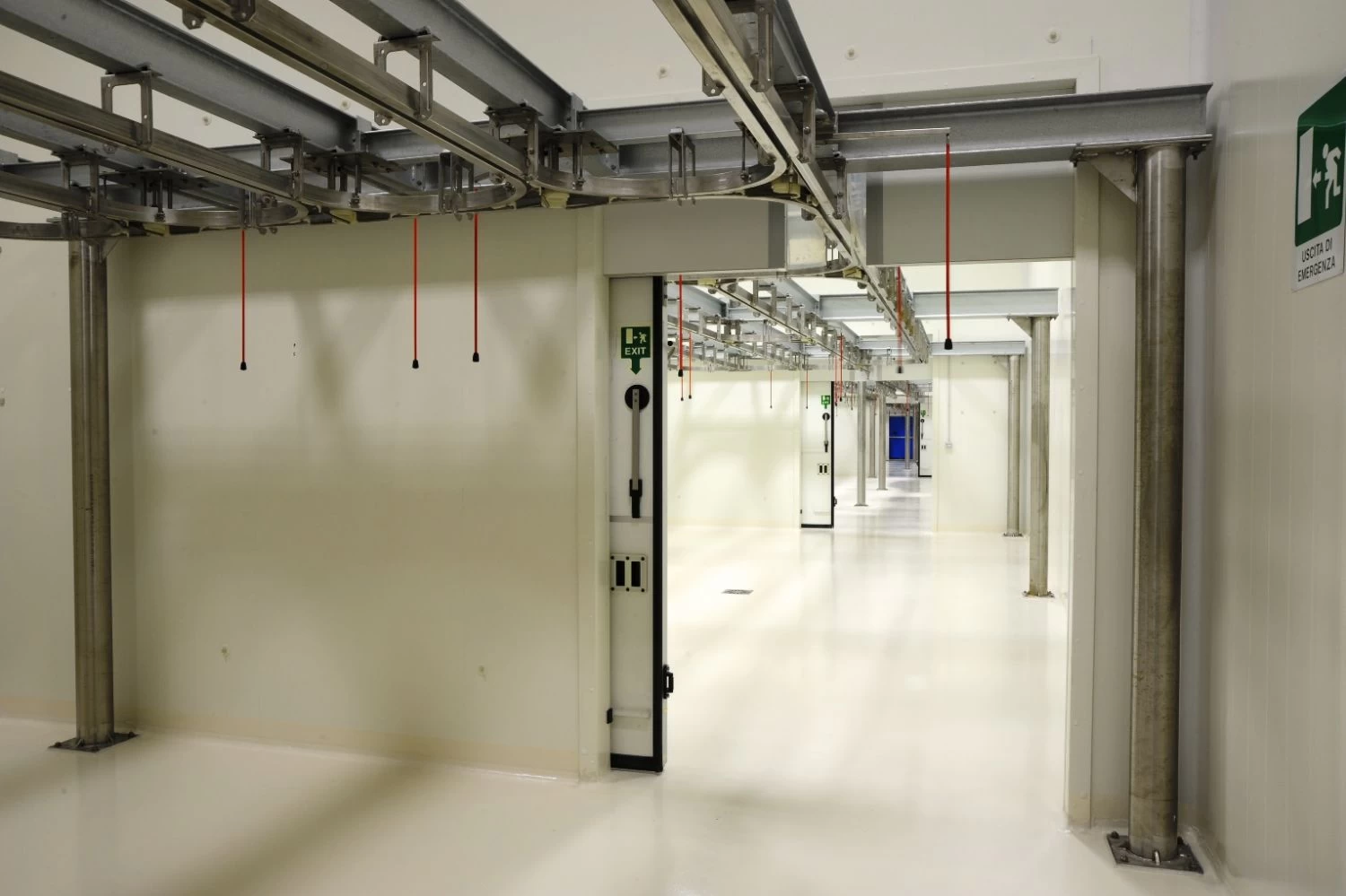

Monorail Cold Room doors are specially designed for the areas where the monorail lines pass. Mainly used in red meat slaughterhouses and meat processing facilities.

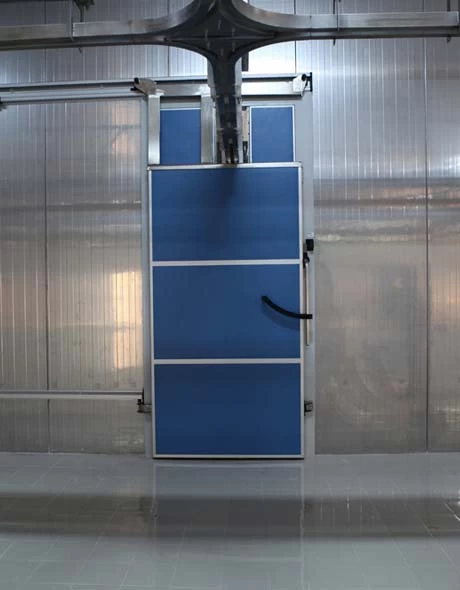

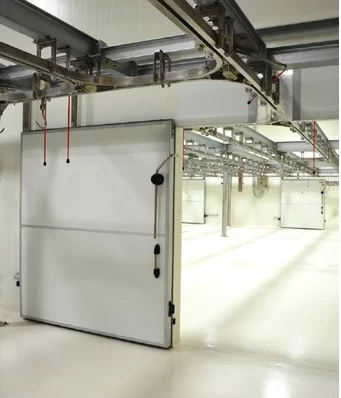

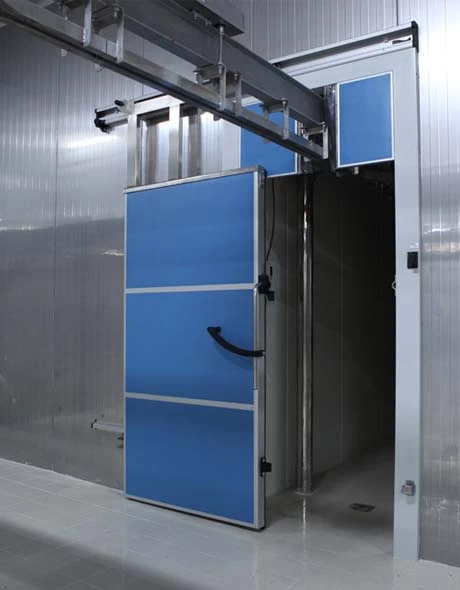

Monorail Doors are specially designed doors which facilitate to transfer heavy carcass meat systematically while entering to or exiting from the cold storages.

MONORAIL DOORS

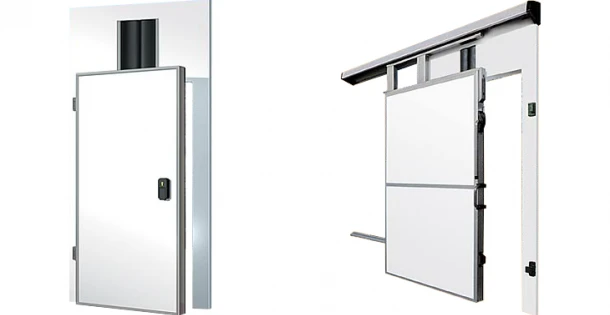

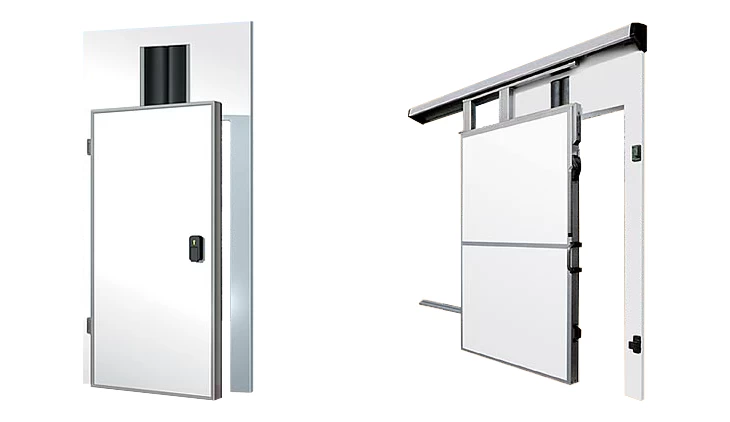

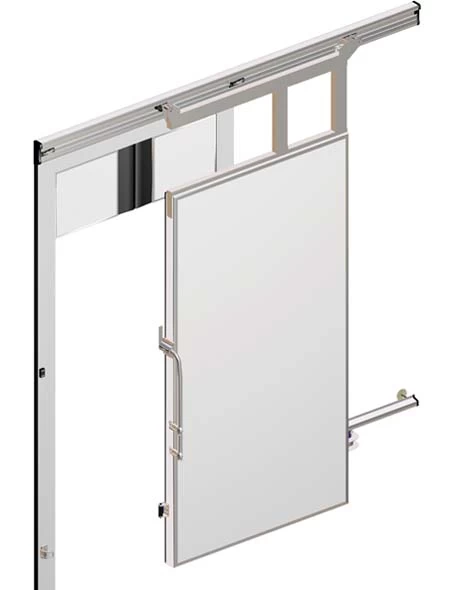

Monorail Doors are produced as hinged or sliding type
Monorail Doors are manufactured by injecting B1 FIRESAFE CLASS (DIN 4102 FIRESAFE) certificated , CFC-Free polyurethane with a density of 42kg/m3 at high pressure in between two epoxy painted metallic sheets which is 0,50mm thickness.
According to type of application, doors wing thickness can be variable thickness such as 8cm, 10cm, 12cm or 15cm. In order to prevent freezing of the seals of the minus degree storage doors, anti-freezing heat resistances are added.
Surface materials of Monorail Type Cold Storage Doors are manufactured as standard RAL 9002 painted Polyester coated Galvanized Steel. Depending on customer demand, surface material of the doors can be produced with polyester coated galvanized sheet; PVC coated galvanized sheet or Cr-Ni (AISI 304 stainless steel).
Doors are entrance points for cold rooms where hygiene is highly important. That’s why doors are manufacturing by using hygienic and antibacterial materials based on HACCP principles.
